Rubber Compression Molding Machine
Features:
Adjust the speed of mold open and close
Configured with optional external ejecting device
Suitablei for high plasticity materials such as rubber,melamine,etc.

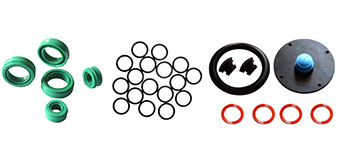

Applicable products
Model specification
| Force(KN) | Stocke(mm) | Piston DIA(mm) | Platen Size(cc) | Moto Power(kw) | Heating Power(kw) | Total Power Per(kw) |
| 1000 | 200 | 255 | 400*400 | 5.5*2 | 14.4 | 25.4 |
| 1500 | 250 | 310 | 460*460 | 5.5*2 | 18 | 29 |
| 2000 | 250 | 355 | 505*510 | 7.5*2 | 25.2 | 40.2 |
| 2000 | 250 | 355 | 545*560 | 7.5*2 | 29 | 44 |
| 2500 | 250 | 400 | 600*600 | 7.5*2 | 34.6 | 49.6 |
| 3000 | 300 | 450 | 650*650 | 11*2 | 38 | 53 |
| 3500 | 300 | 475 | 750*750 | 11*2 | 53 | 75 |
| 4000 | 300 | 500 | 800*800 | 11*2 | 59.5 | 81.5 |
| 5000 | 350 | 560 | 850*850 | 11*2 | 66 | 88 |
Specifications are subject to change without notice.
